To NVME M-key M.2 NGFF SATA SSD PCBA Case Combo Type-C & USB3.0 RTL9210B Chipset 2280 / 2260 / 2242 /2230 mm Adapter

Overview

Overview

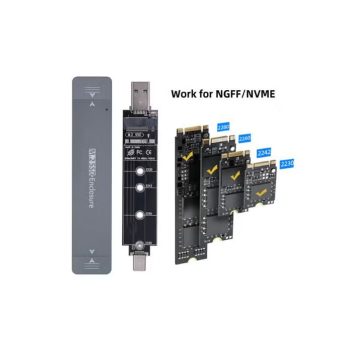

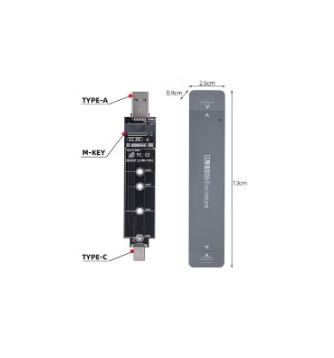

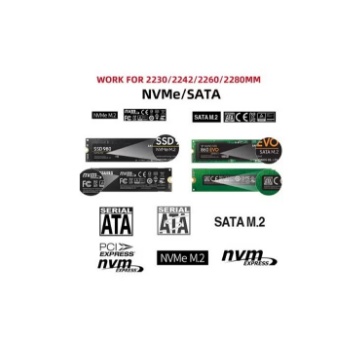

The item included one PCBA(RTL9210B Chipset) and Case. (Type-A and Type-C connector included.) Fit 2230/2242/2260/2280mm NGFF/NVME M.2 SSD.(The NGFF SSD is not included) The RTL9210B chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode. In USB-to-SATA mode, the RTL9210B supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth. In USB-to-PCIe mode, the RTL9210B supports PCIe Gen3 x2. For PCIe, it provides up to 10Gbps bandwidth.The PCIe host supports NVM Express

Specifications
